ResQsheet

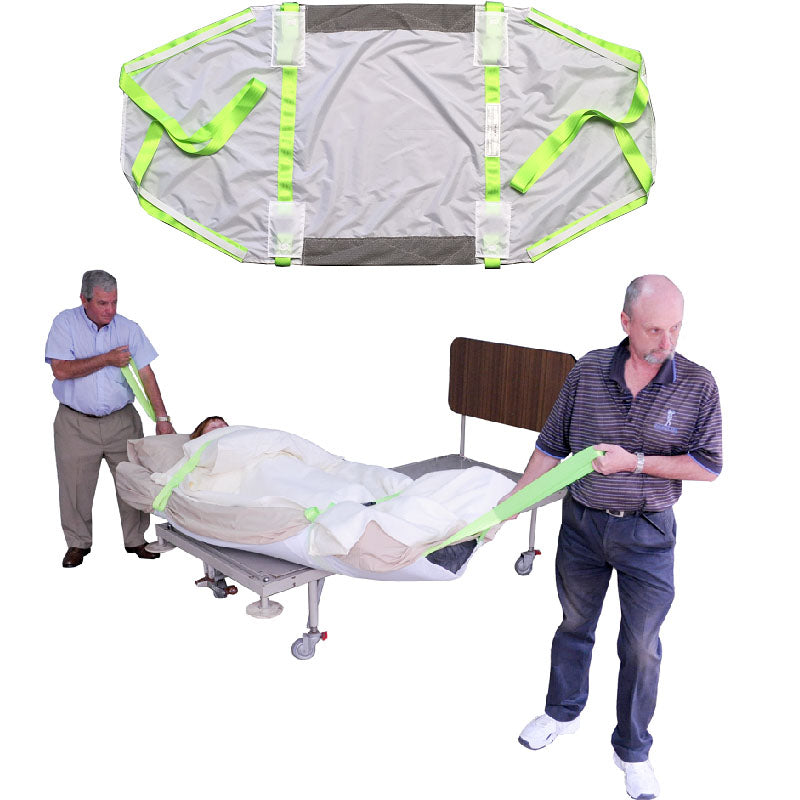

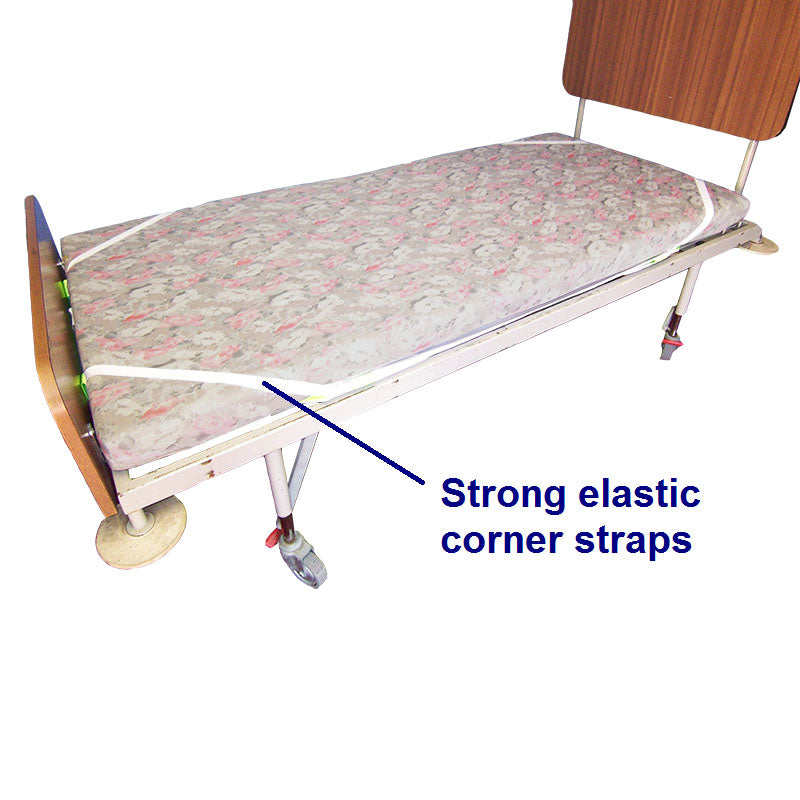

The ResQsheet is for emergency evacuation of non-ambulant patients and kept in position under the mattress with strong elastic corner straps, and is large enough to fit a King Single size bed. Daily bed making is as normal.
Before ordering, please view the entire range of ResQ Products listed at the bottom of this page to ensure that you select the most appropriate product for your needs and circumstances. If you require assistance choosing, please
contact us
.
For better sliding properties on carpet, consider the
ResQsheet for Vinyl & Carpet.
For Deep or Airflow Mattresses:
ResQsheet for Vinyl & Carpet – Deep & Airflow
.

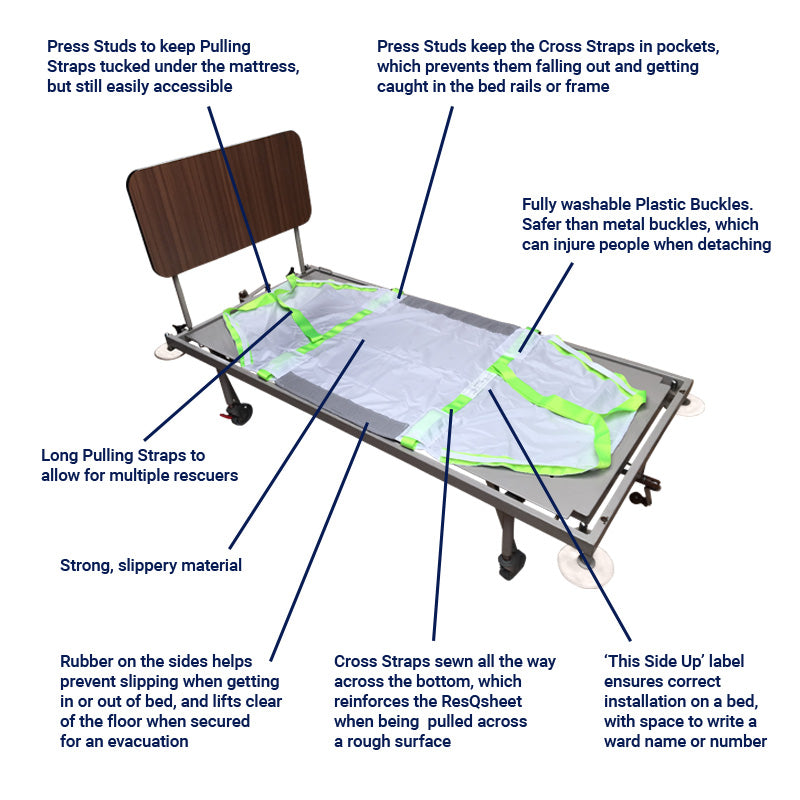

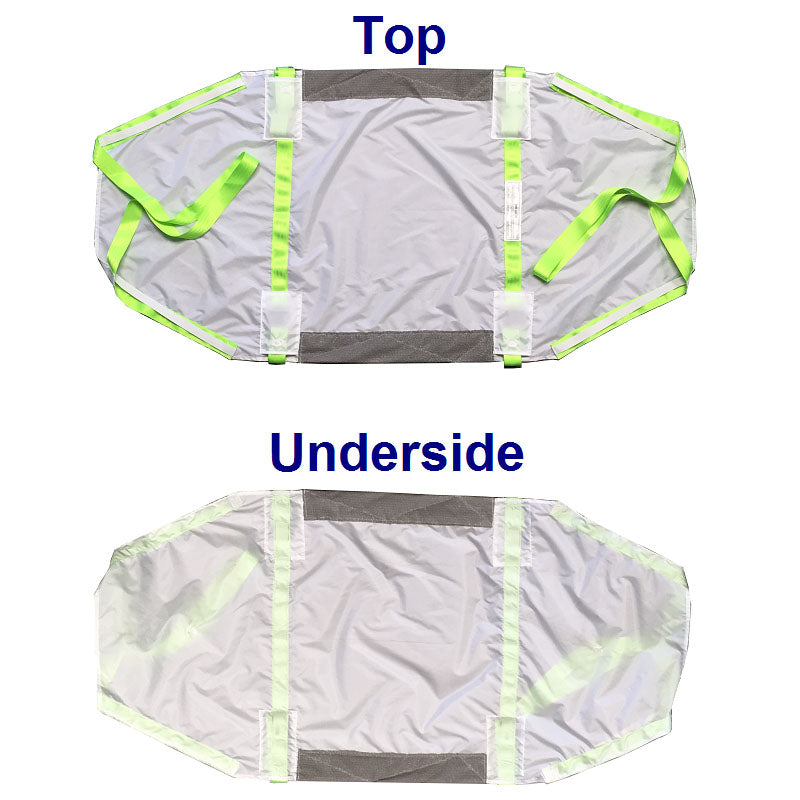

Overview
Pulling Straps sewn half way down the length to allow for more rescuers
Cross Straps sewn all the way across the material for extra strength
Built in plastic slide board – excellent for sliding on all surfaces
Plastic buckles – safer than metal buckles/will not damage a washing machine
Miracle Grip on the sides to help prevent the mattress slipping on bed frame
Press studs & pockets to safely contain the straps

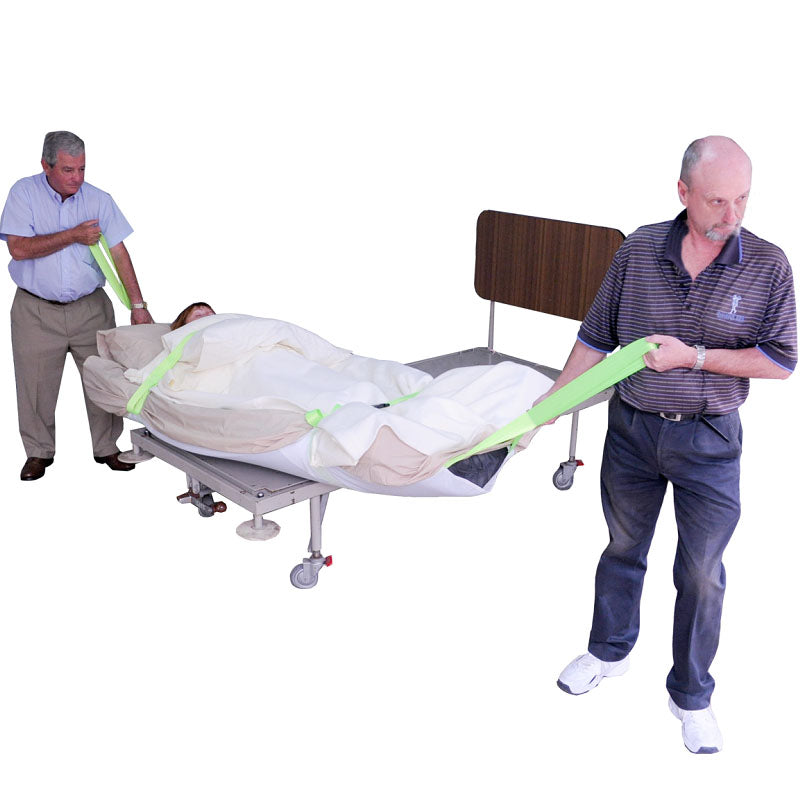

If there is an emergency, then the webbing straps are removed from their pockets and quickly done up around the mattress and the Patient. The head and foot end pulling straps are also taken out from under the mattress. The mattress and the Patient are then lowered onto the floor for very fast and safe evacuation. This saves the staff from having to carry them. The Patient is protected by their mattress and they can be easily taken down stairs to safety.
After an emergency evacuation, the Patient can be left still cocooned in the ResQsheet which may be helpful with patients who are liable to wander. The Cross Straps are sewn across the full width of the ResQsheet to provide extra security in case the strong nylon material should tear on a rough surface, i.e. driveways, roads, etc.
There are many names by which this type of item is known. Some include: Evacuation Sheets, Fire Sheets, Fire Rescue Sheets, Fire Evacuation Sheets, Fire Blankets, or Ski Sheets.
Special Features

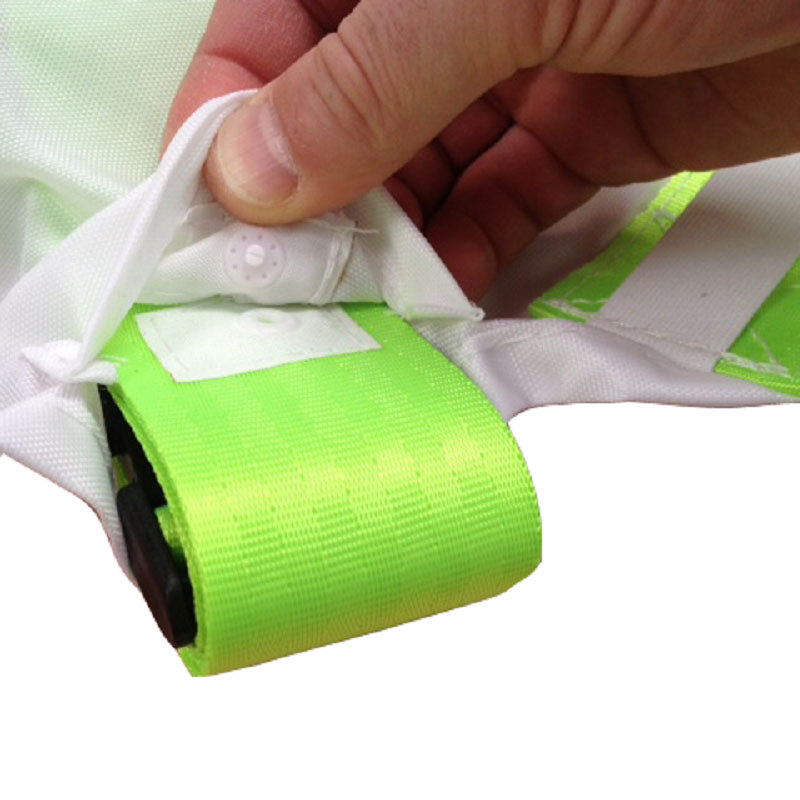

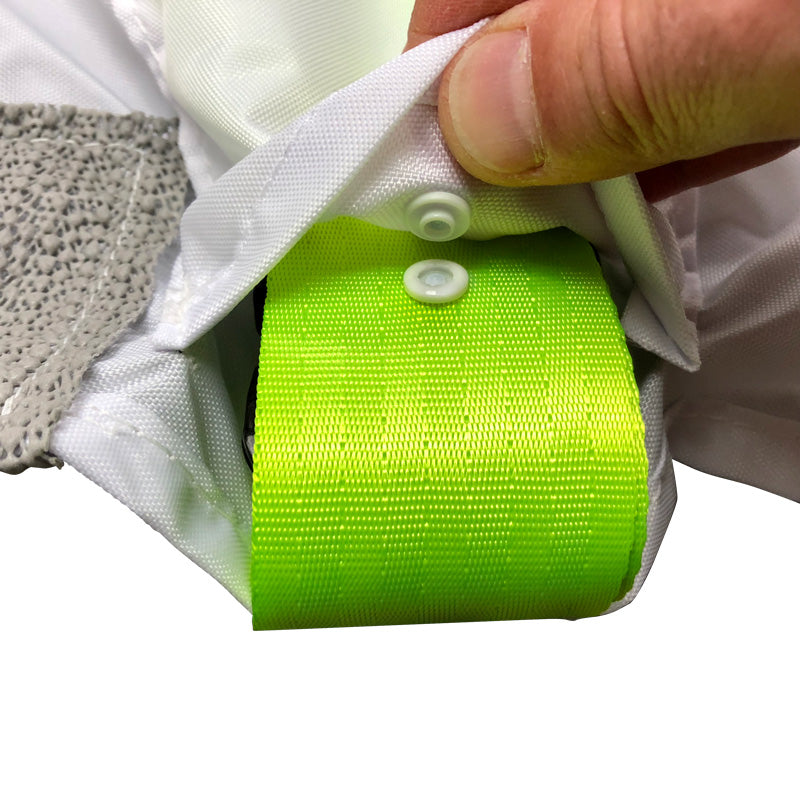

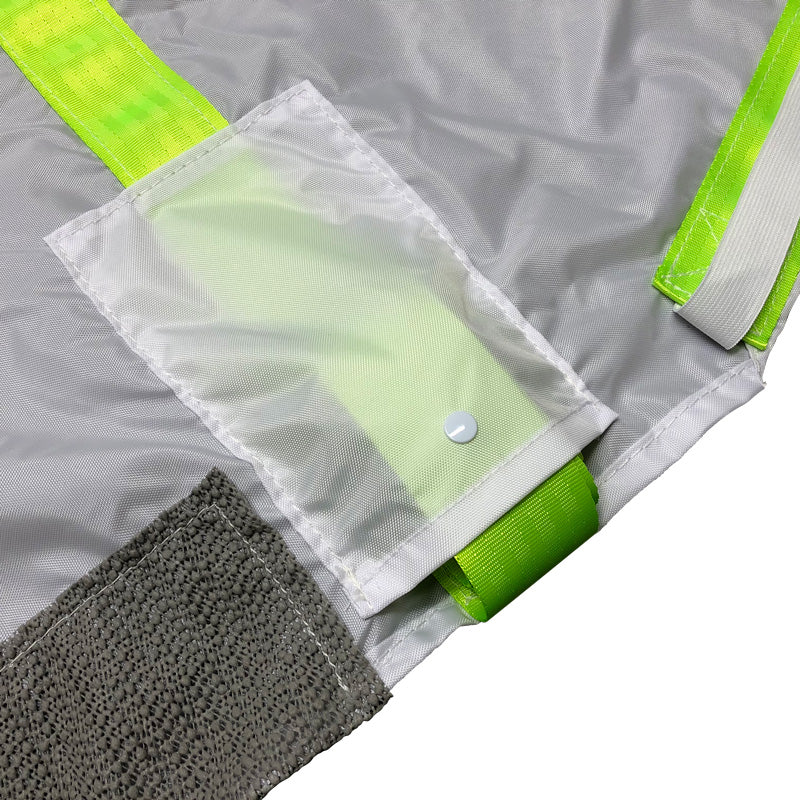

With any make of evacuation sheet, the Pulling Straps and Cross Straps can fall out from under the mattress. If this happens, the buckles can be damaged by the side rails, or when the bed is raised or lowered. Also the Pulling Straps can be tangled on a fitting at the end of the bed. It is always best to avoid the straps becoming tangled on the bed, as this could delay a fast evacuation. To help keep the straps in place, Pelican have included Press Studs
(Patent applied for)
and pockets that keep all of the straps secured to the ResQsheet.

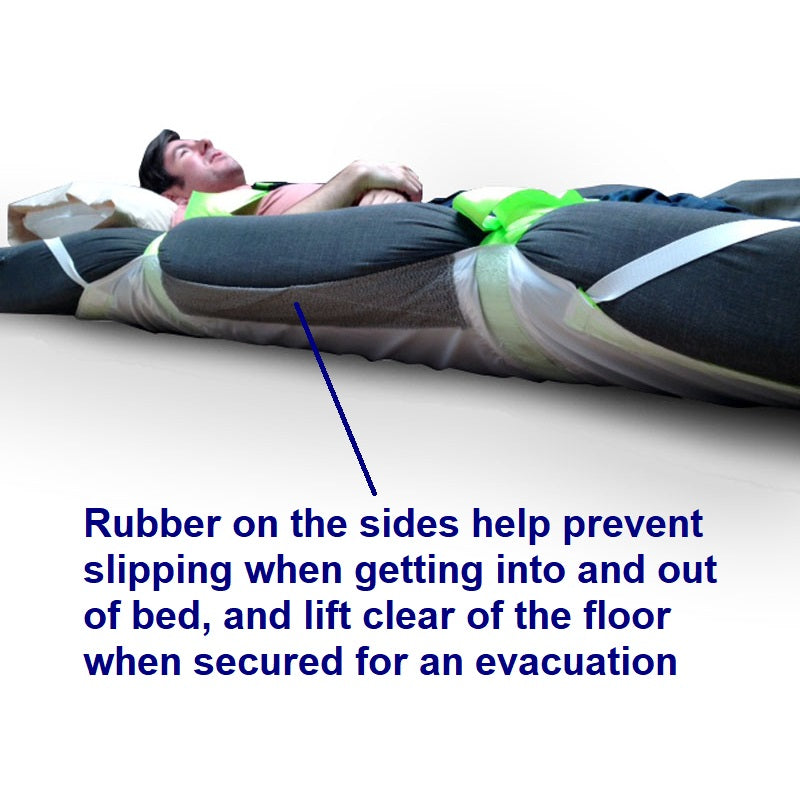

A trend with hospital beds is to no longer have small metal bars to hold a mattress in position. Two pieces of Miracle Grip rubber material are sewn to each side
(Patent applied for)
, on the top and bottom to help prevent the mattress from moving when the Patient gets in and out of bed. When the Cross Straps are done up, then the Miracle Grip is lifted off the floor, so it does not impede pulling.
If you find that using this product contributes to the mattress sliding on the bed frame and need extra support, we suggest using our
Anti Slide Mattress Sticks
or
Anti Slide Mattress Pad
(both sold separately)
.
The ResQsheet is made from a strong white nylon material which is easy to see in the dark when taken outside if an evacuation takes place at night. The white colour shows dirt marks better, so you will know when it needs washing.
To Install

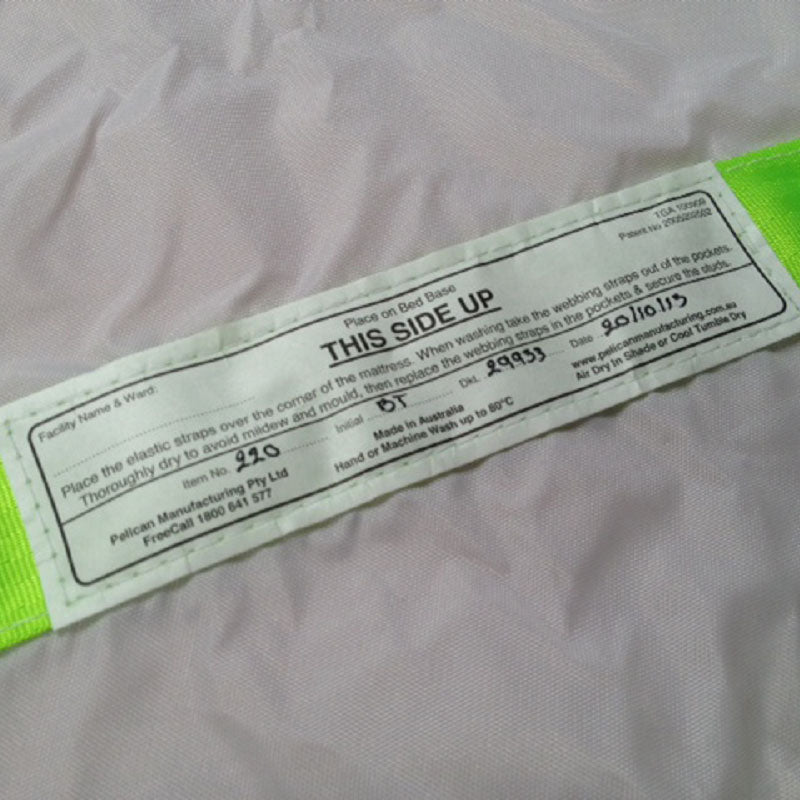

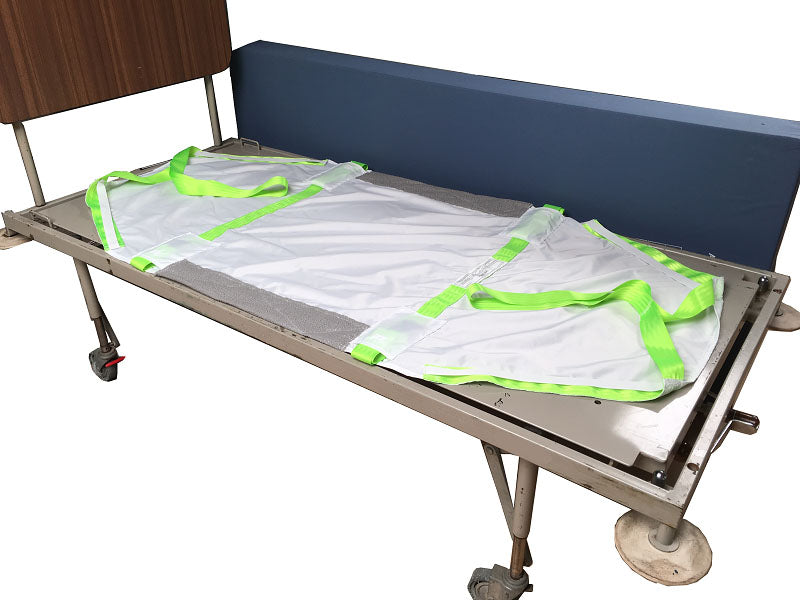

The ResQsheet is positioned under the mattress with the four elastic straps over each corner of the mattress to help keep the ResQsheet in position when bed making. The Cross Straps should be folded and secured into the pockets provided, ready for easy access in an emergency evacuation. Also secure the Head and Foot Straps using the Press Studs.
To Use
Pull the Cross Straps out of the pockets and join the buckle with the strap from the opposite pocket over the Patient and bed clothes. A pillow may be placed under the Cross Straps on the Patient’s chest, and another across their legs, to help further protect them.
Pull the Cross Straps tight to cocoon the Patient, complete with sheets and blankets still on the mattress. Take out the Head and Foot Pulling Straps from under the mattress. Lower the bed as far as possible. Then use the Straps to lower the Patient and mattress off the bed and slide along the floor by using the long Pulling Straps at either end.
ResQSheet Extension Straps
(sold separately)
are available which can fit to any of the Pelican ResQ products to allow for more people to pull.
Testing
The materials used to make the ResQsheets are the same as we use for our Lifting Slings. When doing NATA Testing, the Slings lifted 1,000kg / 2200lbs without failing.
When carrying out ‘In House’ testing, the ResQsheets were pulled at a fast walking speed on carpet and vinyl, with a load of 104kg / 229lbs. The test results can vary on different grades of carpet depending on the pile and underlay. With vinyl flooring, the type of vinyl and any polishes or cleaning materials used may also affect the pulling force. Therefore these results are just an indication of the reduction. The Initial Force was when the ResQsheets were on the floor. After taking the mattress off the bed, and starting to slide straight away, the initial force should be less. The table below shows the forces in relation to the ResQsheet, and the
ResQsheet for Vinyl & Carpet
. If there are long corridors of carpet, we recommend the
ResQsheet for Vinyl & Carpet
.
Item Name
Pulling Weight
Carpet Floor Initial Force
Carpet Floor Sliding Force
Vinyl Floor Initial Force
Vinyl Floor Sliding Force
ResQsheet
104kg / 229lbs
36kg / 73lbs
24kg / 54lbs
35kg / 78lbs
30kg / 67lbs
ResQsheet for Vinyl & Carpet
104kg / 229lbs
30kg / 67lbs
15kg / 34lbs
39kg / 87lbs
38kg / 85lbs
Plan Escape Routes for Fire Evacuation
Do not have furniture that may impede pulling the mattress and Patient down a corridor. Make sure that there is enough space to leave the room and to turn in the corridor in an emergency evacuation.
The full range of ResQproduct options are listed below
ResQsheet
Stored under the Patient’s mattress on the bed and is ready to use, with the Patient then evacuated with their mattress. Slides well on most vinyl floors.
ResQsheet for Vinyl & Carpet
Stored under the Patient’s mattress on the bed and is ready to use, with the Patient then evacuated with their mattress. Slides well on most vinyl floors including vinyl & carpet.
ResQsheet for Vinyl & Carpet – Deep & Airflow
Stored under the Patient’s mattress on the bed and is ready to use, with the Patient then evacuated with their mattress. Slides well on most vinyl floors including vinyl & carpet. Design for deep and airflow mattresses.
ResQme
This is kept in storage and taken to a Patient who needs to be evacuated. A budget option evacuation device.
ResQpod
Same as the ResQme above, but with more Cross Straps to contain the Patient.
ResQmat
Same as the ResQme and ResQpod above, but with a built-in mini-mattress for comfort, and the side material can enclose the Patient.
ResQslide Board & Chair Strap Kit
The ResQslide Board & Chair Strap Kit is used to slide someone from a wheelchair to an evacuation device on the floor, such as the ResQmat, ResQpod or ResQme which can slide down stairs.

Item #
220
Size:

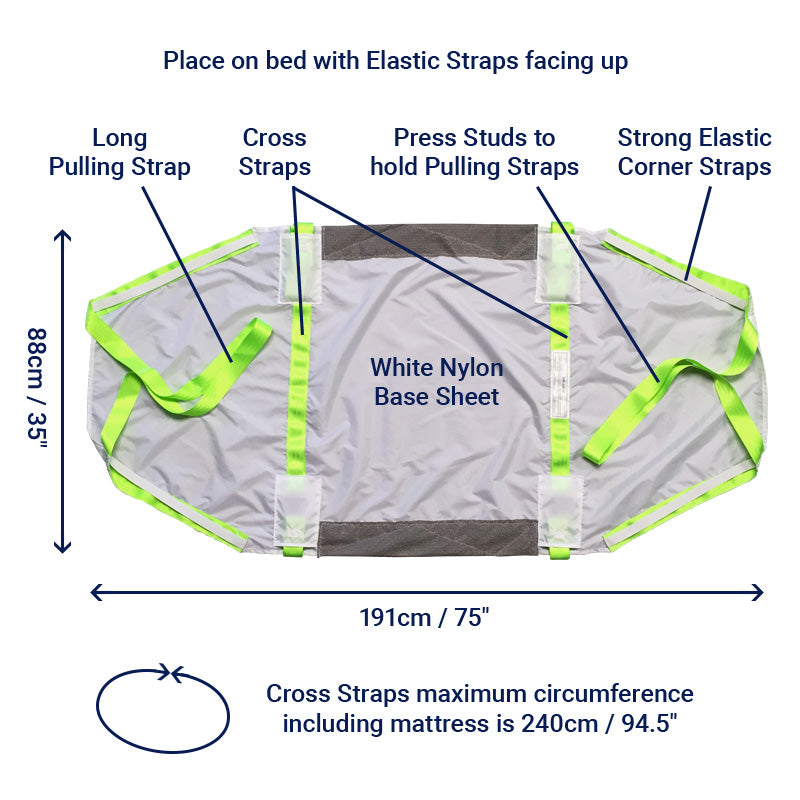

191cm x 88cm (75″ x 35″)
Safe Working Load (SWL):
300kg / 660lbs
Note:
There is no Standard for this product, therefore we have adopted the testing requirements as set out in International Standard ISO 10535:2011:
Hoists for the transfer of disabled persons – Requirements and test methods
. This Standard covers testing for mechanical lifting hoists and associated lifting slings. It includes a method for obtaining a SWL for a lifting sling which lifts a person’s entire weight, which Pelican’s range of slings adhere to. We use the same materials, thread and method of stitching our slings, as we do for the ResQ products. An important difference is that the ResQ products are designed to be slid, not lifted, so the SWL stated above could theoretically be increased. Because people’s weight and size may be distributed differently between the chest, stomach and legs, it may be possible that the Cross Straps do not fit
some bariatric people
. If possible, we recommend this is tested before an emergency occurs. If this is the case, please contact us as we may be able to supply extension Cross Straps.
