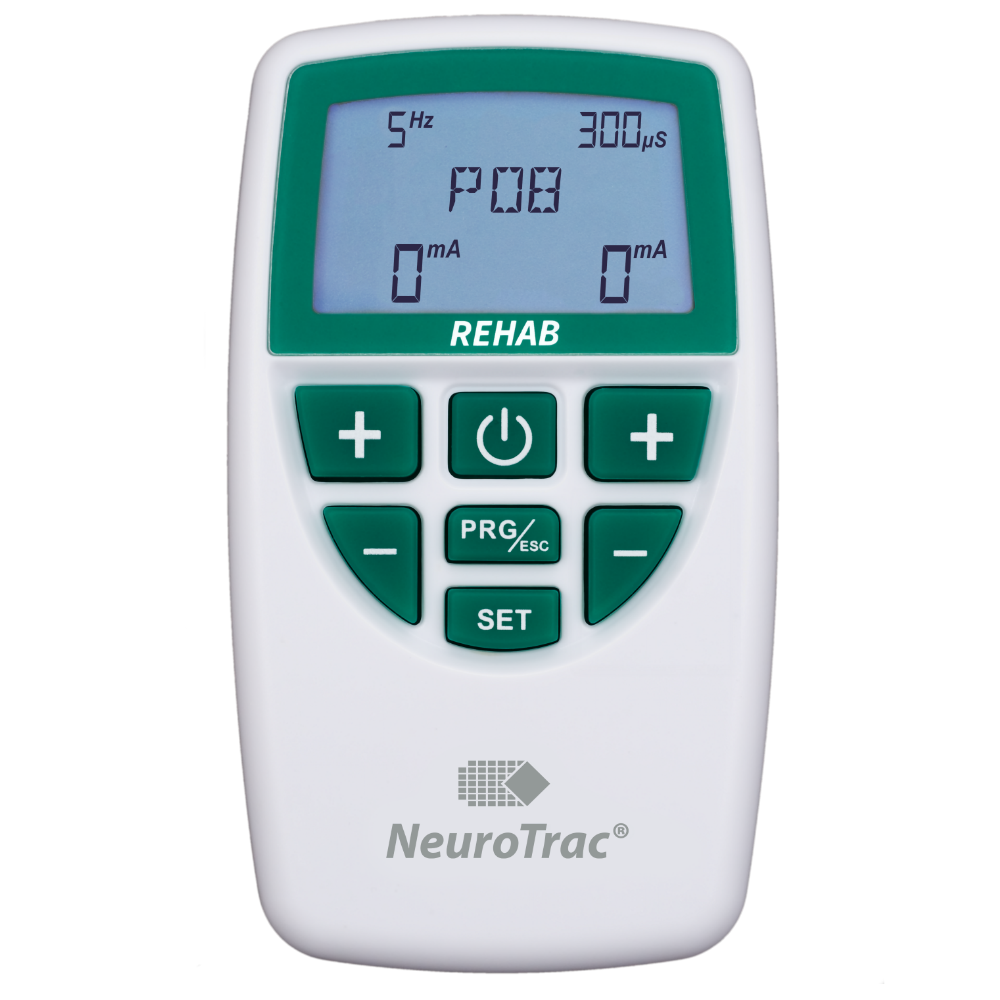

neurotrac rehab

• Dual channel TENS and NMES device with remote switch controlled programames.
• 10 Preset TENS programmes, 10 Preset Neuromuscular Stimulation programmes. The wired remote switch control of mA by the patient ( to speed up the neuro-muscular re-education) facilitates a range of rehabilitation protocols, including Foot Drop
• 2 Customisable TENS and 1 Customizable remote STIM programme.
• Lock mode function for measuring and recording home compliance (mA and total time used).
• Clear bright backlight LCD allows the display to be read more easily in low light or dark conditions.
• Keypad with bigger buttons for ease of use.
• Compact, light and reliable

TENS and STIM

• Dual channel: individually isolated circuits.
• Amplitude: 0-90 mA into 500 Ohm load ; indication only. Actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 70 mA, at 1500 Ohms load the maximum will be limited to 65 mA.
• Type: Constant Current, maximum output voltage 180 Volts +10 / -30 Volts.
• Waveform: Asymmetrical, rectangular bi-phasic with zero DC current.
• Selectable pulse width: 50 ìS – 450 μS [2% accuracy].
• Pulse Rate selection: in the continuous mode 2 – 200 Hz [2% accuracy].
• Mode: Continuous, Burst or Modulated.
• Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.
