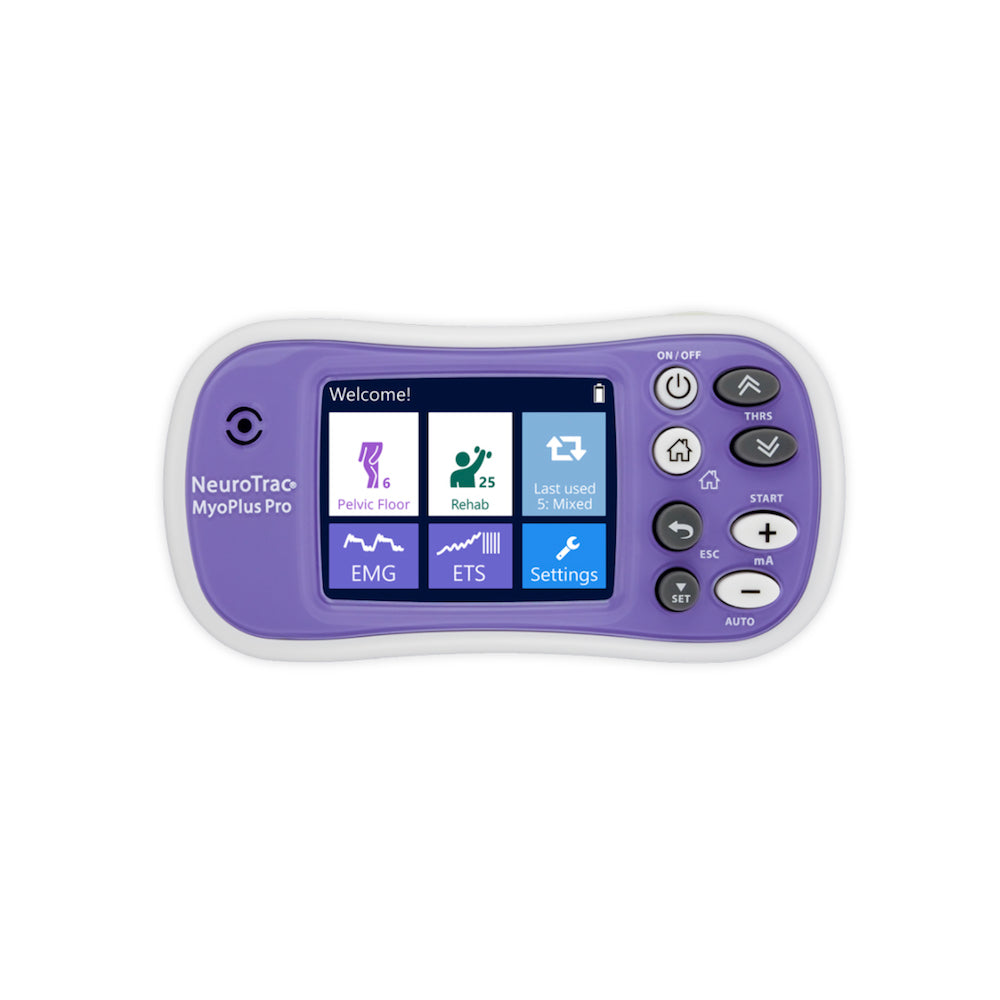

Neurotrac Myoplus PRO

Product Details
Neurotrac Myoplus PRO
Single Channel EMG, NMES, ETS
(inc wireless software kit)
New and Improved
touch-screen with full colour display
. The new user friendly interface makes it a self-explanatory unit with the interactive learning on the go, including electrode placement, running EMG graph, EMG biofeedback, Games and Templates as well as many other helpful tools.
Features:
Pre-set programmes for Incontinence treatment and neuro-muscular Rehabilitation. Includes 22 Preset Pelvic Floor,  25 Preset Rehab Programs and 3 Preset TENS Programs.
10 Customised programs for EMG, STIM or ETS.
Designed for Physiotherapist in mind to be used as a portable tool. Suitable as a personal trainer for in-clinic or home use (under guidance).
Single channel EMG (Biofeedback)
Single channel ETS (EMG triggered stimulation)
Simple single-phase or multiphase operation: multiphase allows EMG/ETS/STIM to be combined in one programme.
Multilingual full color display screen and voice prompts for Biofeedback.
Manual and Automatic threshold control.
EMG Biofeedback between stimulation (muscle activity and tiredness indication when using muscle stimulation).
Stand alone device or used in conjunction with established multilingual software.
Up to 10 meters of wireless connection for NeuroTrac Software.
For home users: Produces and prints (with the optional PC Software) the comprehensive patient progress reports on a day to day basis providing average readings on work/rest, peak, onset and muscle release times, work and rest deviations and the average mA current.
Used as a learning tool for both patient and clinician with emphasis on improving treatment techniques in the use of EMG and Neuromuscular stimulation.
Product Specifications:
EMG
0 Single channel EMG
1 EMG Range: 0.2 to 2000 μV RMS (continuous)
2 Sensitivity: 0.l μV RMS
3 Accuracy: 4% of μV reading +/-0.3 μV at 200 Hz
4 Selectable Bandpass filter – 3db Bandwidth,
Wide: 18 Hz +/- 4 Hz to 370 Hz +/- 10% – Reading below 235 microvolts 10 Hz +/-3 Hz to 370 Hz +/- 10% – Reading above 235 microvolts
Narrow: 100 Hz +/- 5% to 370 Hz +/- 10%
5 Notch filter: 50 Hz (Canada 60Hz) – 33 dbs (0. 1% accuracy)
6 Common Mode Rejection Ratio: 130 dbs Minimum @ 50 Hz
7 Work / Rest periods: 2-99 seconds
8 Number of Trials: 2-99
2. NMES, TENS and ETS
2.1 Single channel Stimulator
2.2 Amplitude: 0-90 mA into 500 Ohm load – actual mA will tend to be less than indicated due to Electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 75 mA, at 1500 Ohms load the maximum will be limited to 50 mA.
2.3 Type: Constant current, maximum output voltage 70 Volts +5 / -10 Volts
2.4 Waveform: Symmetrical, rectangular, bi-phasic with net zero DC current
2.5 Pulse width selection: 50-330 μS (10% accuracy)
2.6 Pulse rate selection: 2-100 Hz (5% accuracy)
2.7 Work / Rest periods: 2-99 seconds
2.8 Time 1 – 99 minutes
2.9 Ramp up time: 0.1 – 9.9 seconds
2.10 Preset and user programmable treatment Programs
2.11 Automatic output shut off with detection of open electrode above 10 mA (+/- 2mA).
Dimensions:  Length 150 mm, Width 89 mm, Depth 35 mm.
Weight: MyoPlus Pro device: 140g (without batteries).
NeuroTrac Myoplus Pro comes complete with:
4 x 1.5V AAA Battery
One packet of 50mm x 50mm skin electrodes
One packet of 2 Patient Lead Wires
One Earth/Reference Lead Wire
Operating manual
Software Kit
Soft carry case
1 year warranty on the unit only.
Optional Accessories:
NEUPROBE: Vaginal Probe
