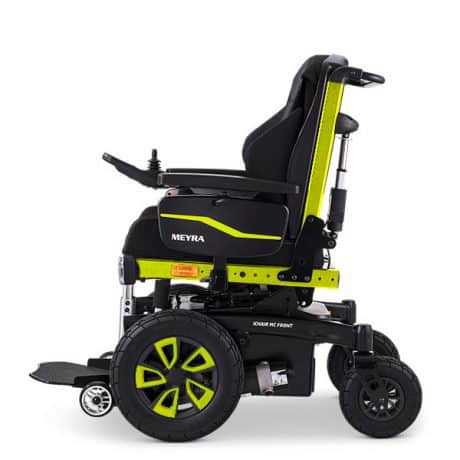

Meyra MC-F Front Wheel Drive Power Wheelchair

A compact, nimble, heavy duty front wheel drive power wheelchair. The front wheel drive configuration and high quality controller system make the MC-F precise and easy to drive.
Front wheel drive also means you can have 90° legrest hangers—so get up close to desks and tables!
Easy customisation of different seating and backrest systems; controller and joystick combinations—plus a wide range of options and accessories make the MC-F versatile for a wide range of conditions.
FRONT WHEEL DRIVE
Obstacle climbing ability is the strength of front wheel drive power wheelchairs. FWD also have great stability and weight distribution.
FWD power chairs manage tight corners well, as they have a shorter front end than other configurations.
FWD chairs are usually a smoother ride outdoors, due to having larger casters than mid wheel drive chairs.
POWER SEAT TILT & POWER BACK RECLINE
Get the pressure relief you need with the MC-F’s 50° power seat tilt and 50° power backrest recline.
Tilt and recline systems have numerous health benefits, including reducing the risk of pressure injuries, reducing shear force on the base of the spine, oedema management, easier transfers and reduction of fatigue.
A tilt and recline system makes you more comfortable and reduces back pain, meaning you can be more productive and get more out of your day.
5 FRAME AND ACCENT COLOURS
Make the MC-F your own!
There’s five frame and accent colours to choose from: polar white, magic blue, red metallic, lemon reflex and sun yellow.
The colour accented sections are the seat tubes, back tubes, side panels, two piece legrest and rim inserts.
CENTRAL LEG REST, 90° KNEE ANGLE
90° is the ideal angle for the leg, providing better flexion for the knee joint.
Not only that, with 90° leg rest you can get closer to desks and tables.
A centrally-mounted 90° leg rest also makes the MC-F more compact overall.
ADJUSTABLE SEAT WIDTH & DEPTH
Hit the sweet spot with the MC-F’s adjustable seat width (380 – 650 mm) and adjustable seat depth (400 – 560 mm).
Adjustable seat width is important for comfort and function. Too narrow puts pressure on the hips and thighs; too wide, and you don’t get the posture support you need. Seat depth too needs to be just right for correct posture. The MC-F’s adjustability means you can get the comfort and support level you need.

SPECIFICATIONS:
Specifications
Key Features
Front-wheel-drive configuration for obstacle climbing, stability, and a smoother ride
50-degree power seat tilt and backrest recline system to reduce pressure injuries, spine shear force, manage oedema, and fatigue
Centrally mounted 90-degree leg rest for ideal leg angle and proximity to desks and tables
Adjustable seat width (380 – 650 mm) and depth (400 – 560 mm) for comfort and support, and preventing pressure on hips and thighs
Customisable with five frame and accent colours, including seat tubes, back tubes, side panels, two-piece legrest, and rim inserts
Dimensions
Seat width: 38 – 65 cm
Seat depth: 40 – 56 cm
Backrest height: 45 – 50 cm
Legrest length: 28 – 43 cm
Armrest height: 24 – 35 cm
Seat height – front: 44 – 51 cm
Overall length – with legrests: Approx. 113 cm
Overall length – without legrests: Approx. 91 cm
Overall width: Approx. 62 cm
Wheel size front: 352 x 75mm (14”)
Wheel size rear: 230 x 70mm (9”)
Maximum obstacle climbing height: Approx. 60mm
Turning radius: Approx. 65 cm
Driving range: 35 – 40 km with 73 ah batteries*
Chair weight: Approx. 110 kg, no batteries
Motor power rating: 300 watt 4 pole German motors
Maximum gradient: 15 degrees
Mechanical seat tilt: 4 to 10 degrees
Power seat tilt: 0 to 50 degrees, tilt in space
Mechanical backrest: -10 to + 30 degrees
Power backrest recline: -10 to + 50 degrees
*Distance will be affected by client weight, terrain and battery condition dimension tolerances ± 10 mm ± 2°. Data subject to changes
Safety
Maximum user weight: 160 kg
Compliance testing: Complies with ISO7176 strength & durability standards
Tested and compliant with ISO7176-19 crash test requirements
Warranty
Guarantee on frame: 5 years
Guarantee scissor mechanism: 2 years
