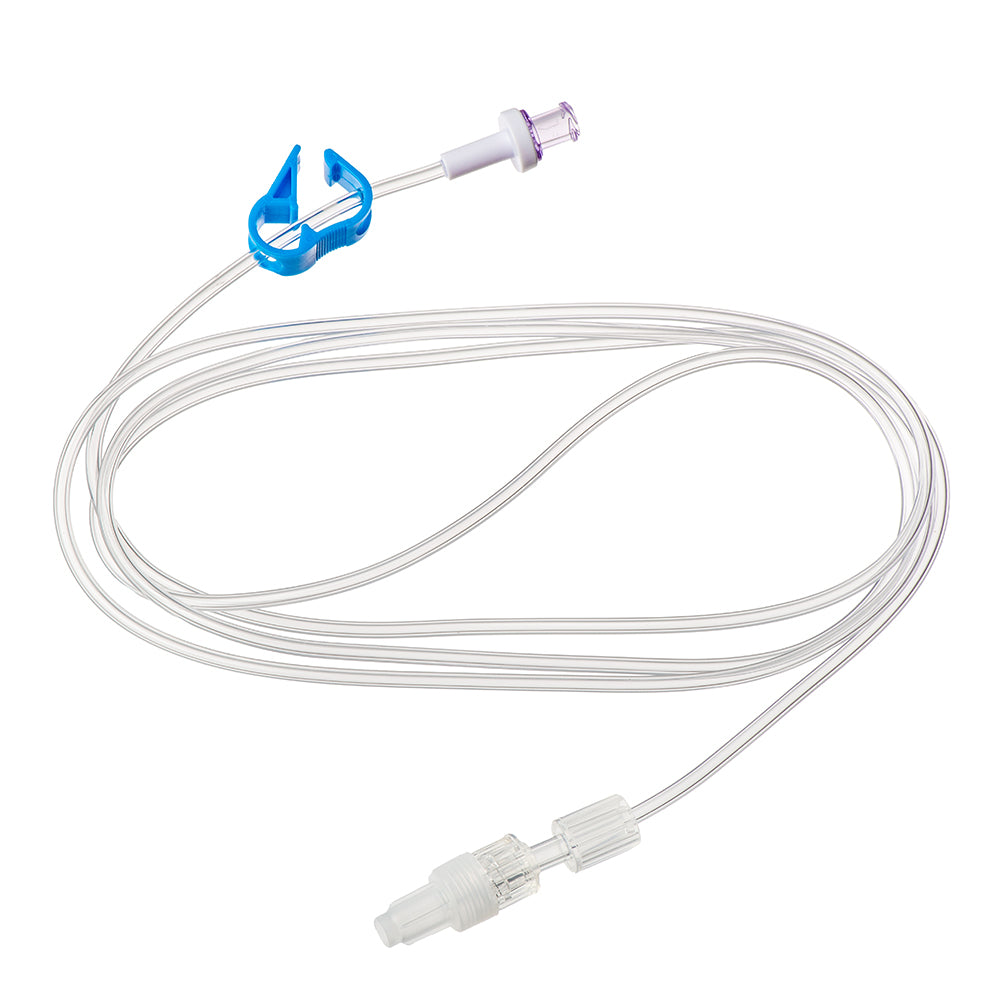

The m|devices Minimum Volume IV Extension Set with anti-siphon valve and click clamp, is 150cm in length. The configuration reveals the anti-siphon valve to male luer lock connection with rotating collar. Designed for use with syringe drivers/pumps to reduce the likelihood of inadvertent infusions through the inclusion of an anti-siphon valve in this set.
Features & Benefits:
Minimum volume bore tubing.
Anti-siphon valve to male luer lock end with RC.
Click clamp.
Transparent, soft, smooth tubing
Latex free
Peel open pouch
Single use only.
Made from non-toxic medical grade PVC
Specifications:
Tubing diameter: 1.5mm
Tubing length: 150cm
Priming volume: 2.6ml
Sterile EO
DEHP free
Lipid resistant: Yes
MRI compatible
Flow rate: 760mL/10min
Maximum back pressure: 30Kpa/4.35PSI
Opening pressure: 21 bar/304PSI
Material: PVC, PE, PC, ABS
Shelf Life: 5 Years
ARTG Number: 228230
For more information click below,
Brochure
Product Data Sheet
Instructions for Use
*This product image is only for reference. The actual product colour may differ.
Additional information
Each | Box
BOX (100 Pcs), Each
