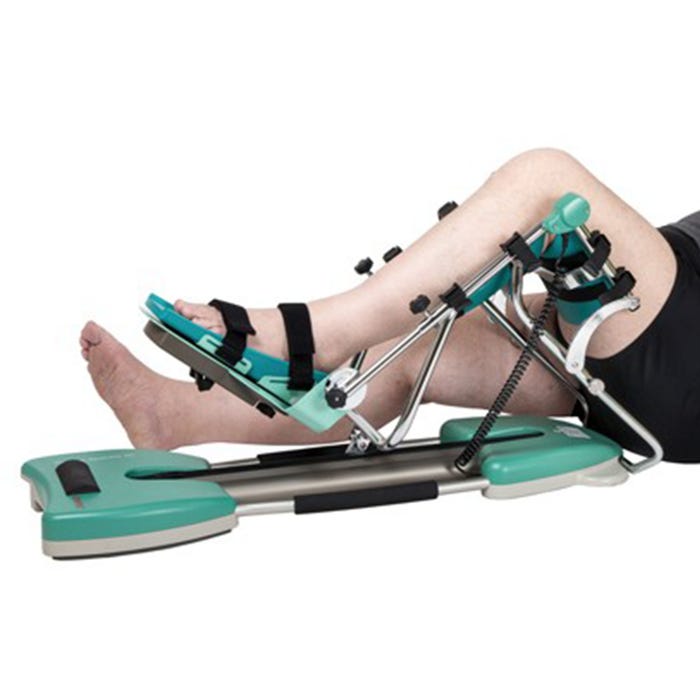

Kinetec Spectra

Spectra
Remarkable designIts arrow shape design and structure is remarkably lightweight and compact facilitating set ups in hospital beds or at patients’ homes as well as easing its storage. The two padded side handles make the unit comfortable to carry.

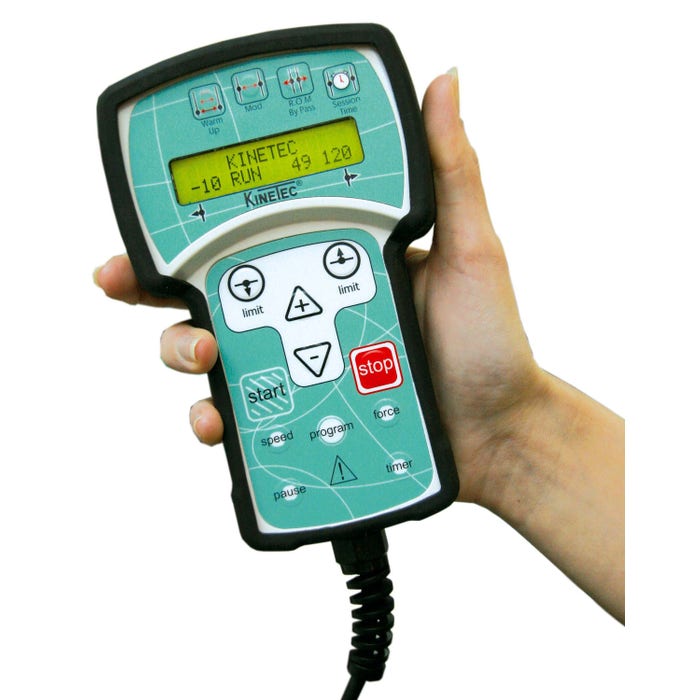

Patient feedback & unique featuresThe digital remote control provides a precise yet clear feedback to the patient as well as it helps the therapy with unique functions such as warm-up or by-pass.
KINETEC DATA CAPTURE™ USB technology readyThe KINETEC SPECTRA™ remote control is also equipped with the latest USB technology enabling the use of the KINETEC DATA CAPTURE™ software and patient USBs to trackpatient progress as well as pre-program the entire patient reha bilitation protocol.
Weight: 12kg (26 pounds)Splint Dimensions: 95 cm (37 in) x 33 cm (13 in) x 33cm (13 in)Angular limits: -10 - 120°Speed: 40 - 145° per minutePatient Height: 1.45 m (4' 9") - 1.95 m (6' 4")Patient measurements:Full Leg: 71cm - 99cm (28” to 39”)Tibia: 38 - 53cm (15” to 21”)Femur: 33 - 46cm (13” to 18”)Patient measurements with paediatric footplate option: Full Leg: 53cm - 109cm (21” to 43”)Tibia: 20cm - 56cm (8” to 22”)Maximum User Weight: 135kg (298 pounds)Power Supply: 100-240 V~Frequency: 50-60HzPower Consumption: 20WDevice of type B Class 1IP 20Storage/Transport Conditions  Temperature: -40 - 70°C / -40 - 160°FRelative Humidity: up to 90%Operating Conditions:Room Temperature: 10 - 40°C (50 - 105°F)Relative Humidity: up to 80%Warranty: 2 Years
Spectra Essential
Intuitive remote controlThe refined remote control design provides an immediate and intuitive control by the user in hospitals or at home helping to focus on the therapy.
Main functions featuredRange of motion, speed and pauses are all adjustable in the hand of the user.
Safety firstThe remote control features a keyboard locking system preventing misuse and enhancingpatient safety.
Evolution compliantThe KINETEC SPECTRA ESSENTIAL™ can be upgraded to the latest Data Capture USB technology by replacing its remote control only (option).
Weight: 12kg (26 pounds)Splint Dimensions: 95 cm (37 in) x 33 cm (13 in) x 33cm (13 in)Angular Limits: -10 - 120°Speed: 40 - 145° per minute.Patient Height: 1.45 m (4' 9") - 1.95 m (6' 4")Patient Measurements: Full Leg: 71cm - 99cm (30” - 39”)Tibia: 38 - 53cm (15” - 21”)Femur: 33 - 46cm (13” - 18”)With Paediatric Footplate Option:Full leg: 53cm - 109cm (21” -  43”)Tibia: 20 - 56cm (8” - 22”)Maximum User Weight: 135kg (298 pounds)Power Supply: 100-240 V~Frequency: 50-60HzPower Consumption: 20WDevice of type B Class 1IP 20Storage/Transport Conditions:Temperature: -40 - 70°C / -40 - 160°FRelative Humidity: up to 90%Operating ConditionsRoom Temperature: 10 - 40°C (50 - 105°F)Relative Humidity: up to 80%Warranty: 2 Years
Spectra XL Bariatric
32cm (12.5 inch) wide carriageThe KINETEC PRIMA XL™ benefits from the same great specifications as the KINETEC PRIMA ADVANCE™ but features a wider and even stronger carriage to treat bariatricpatients.
227kg (500lbs) body weight load ratingThe device also comes with a specifically designed motor enabling exercise on heavier loads in a safe environment.
Great range of motionIts wide range of motion going from -5° of hyperextension to 115° of flexion enables treatment of most knee & hip pathologies.
