The
Extended Leg Board

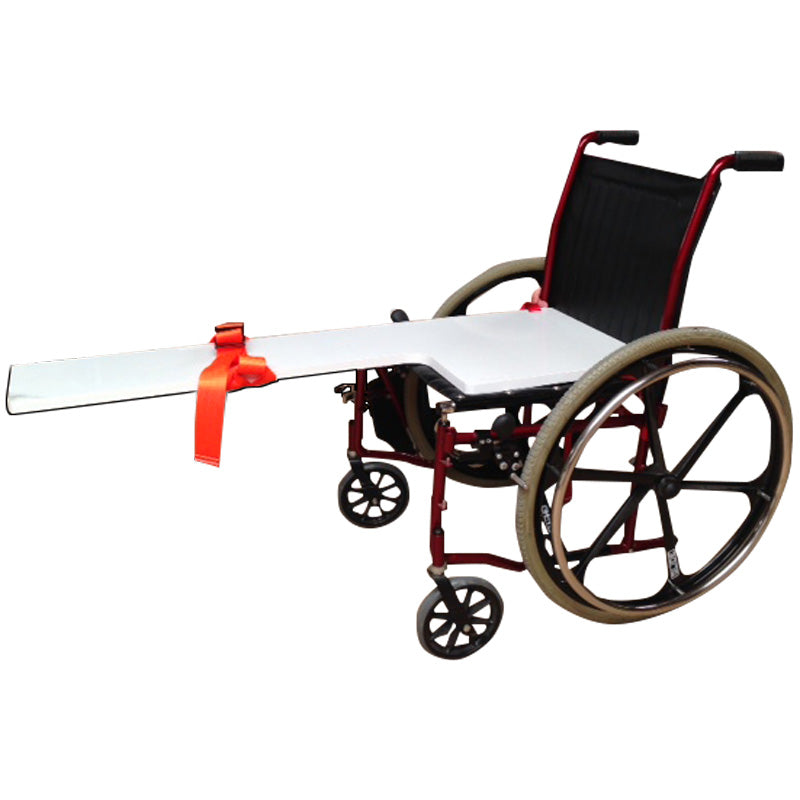

is designed to support an extended leg and is normally used in a wheelchair. Made from a strong plastic that is easy to wipe clean to help Infection Control. This plastic is virtually maintenance free and will not splinter. The webbing straps can be removed for washing or replacing if necessary.

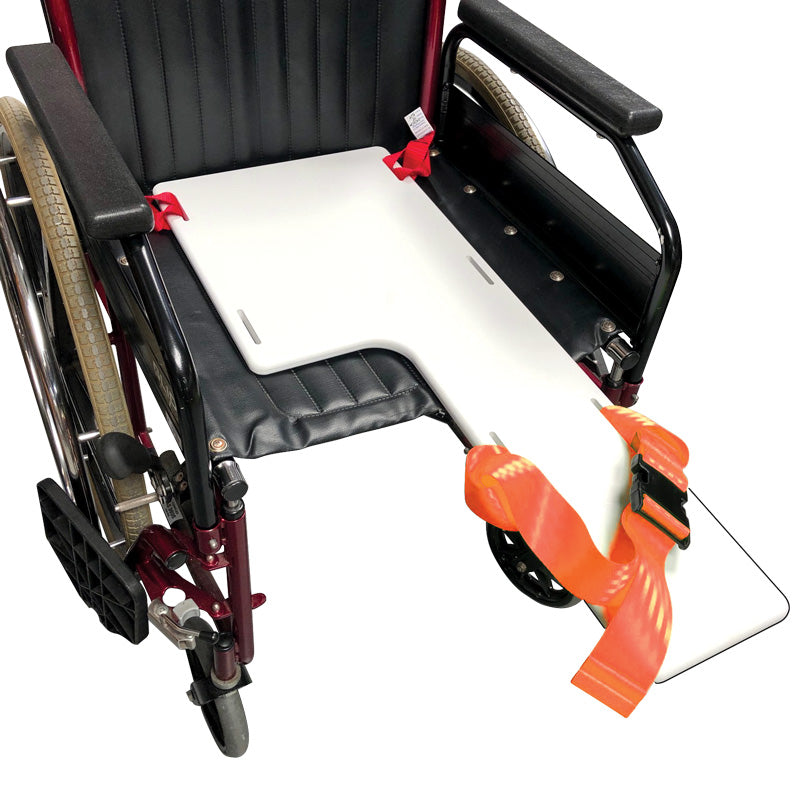

The Board can be used for either the left or right leg. The Amputee and Child sizes work in the same way as the Adult size, but with a shorter board length, making it easier to turn though doorways and around corners.
The
Extended Leg Board – Leg Cushions
(Sold Separately)
are an accessory to fit to the Board and offer protection under the leg and heel. Three sizes are available to fit Pelican’s Adult, Amputee, and Child size Extended Leg Boards.
Note:
As the Adult size Extended Leg Board (Item #529) is considered an over-sized item, customers from outside of Australia should
contact
us before placing an order so that we can provide an accurate shipping cost.
To Fit to a Wheelchair

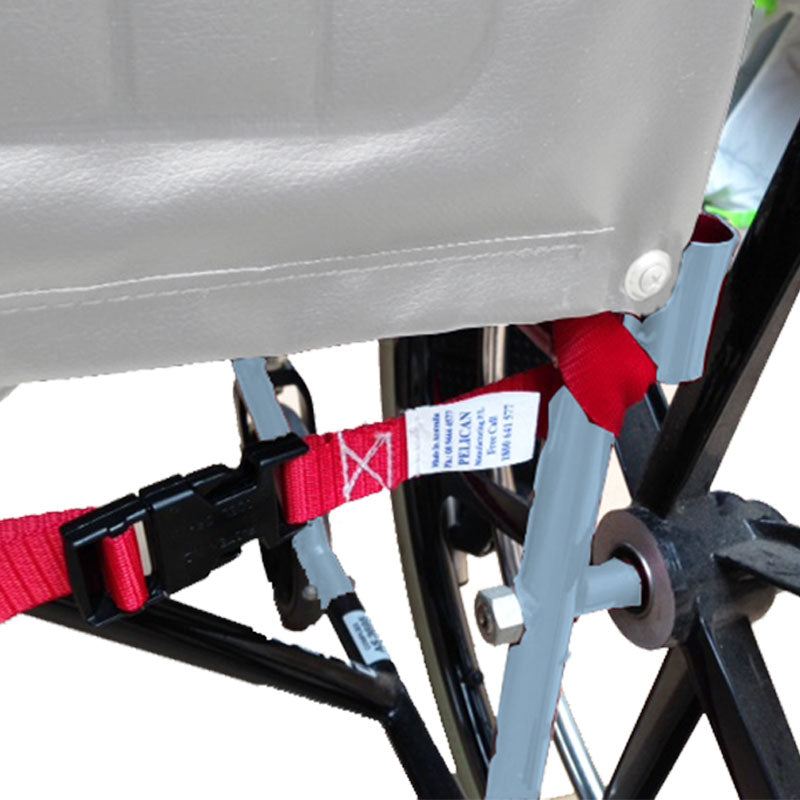

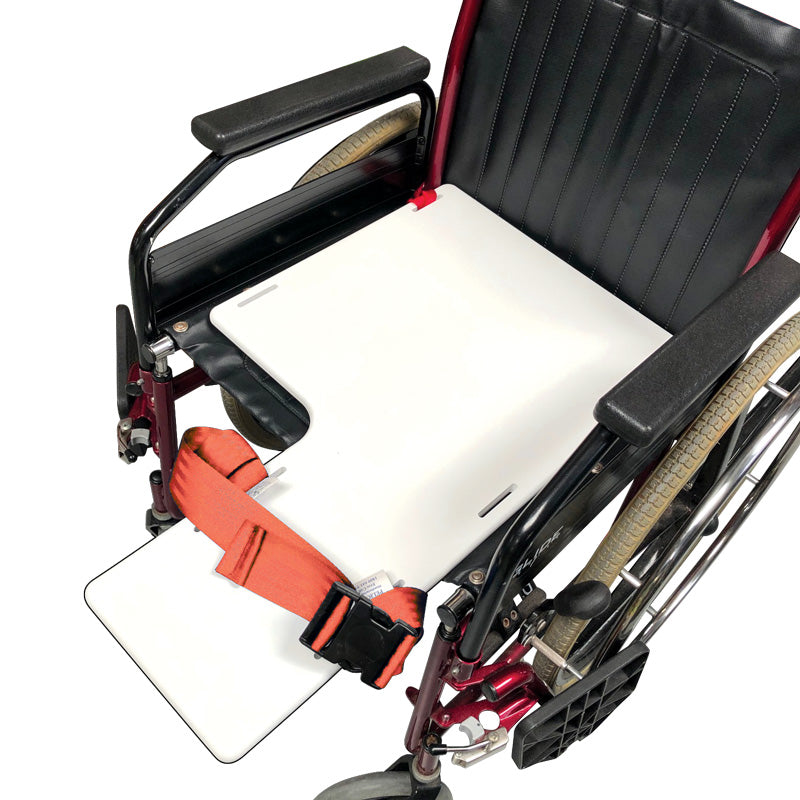

Place the Board on the Chair. Make sure the Extended Leg section will be on the left or right side as required. Then do up the 25mm / 1″ red straps at the rear chair frame, wrapping it around the frame, before doing up the buckle.

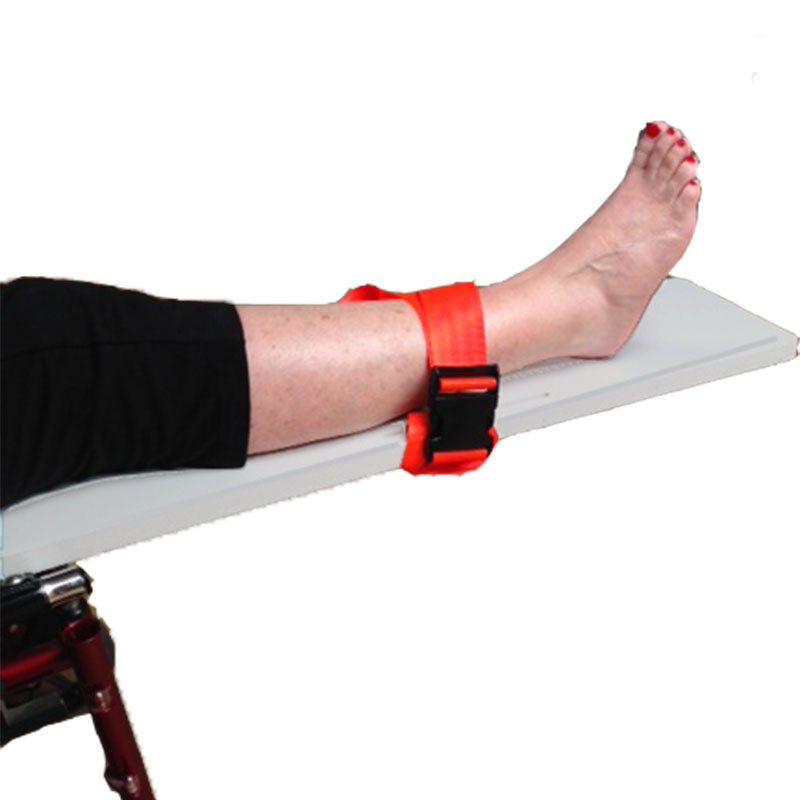

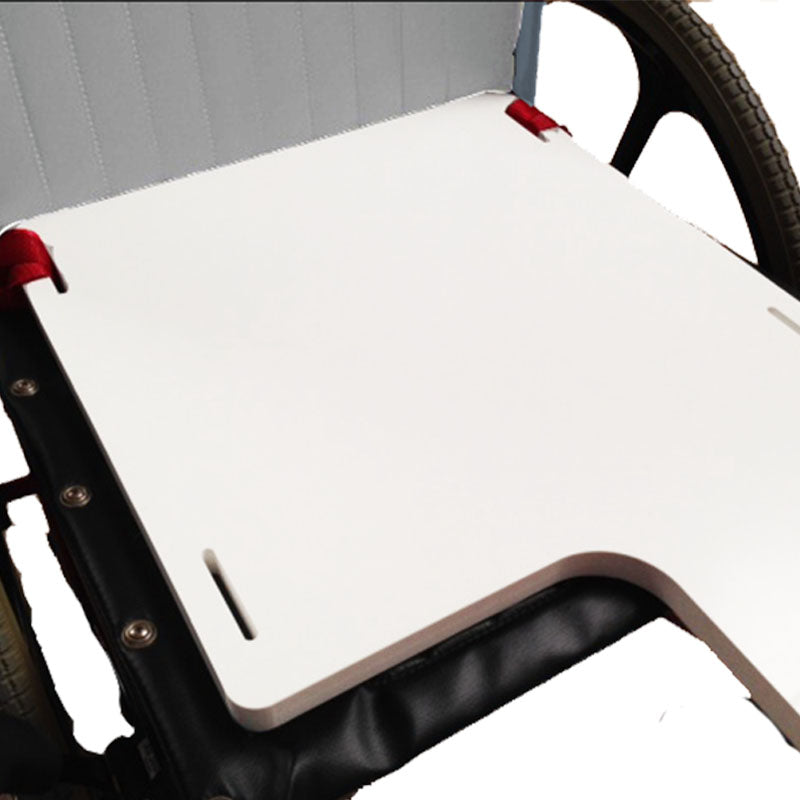

There are another two slots at the front of the sitting section. These are only used if they are needed on a wheelchair when the rear straps do not keep the board in place. These may be needed to restrain the patient’s thighs. If they are needed, another set of straps can be purchased by contacting Pelican. Once the patient is sitting down with their leg on the extended section, the Leg Strap can be done up to keep the leg in position.
Item #
Size
Length
Width

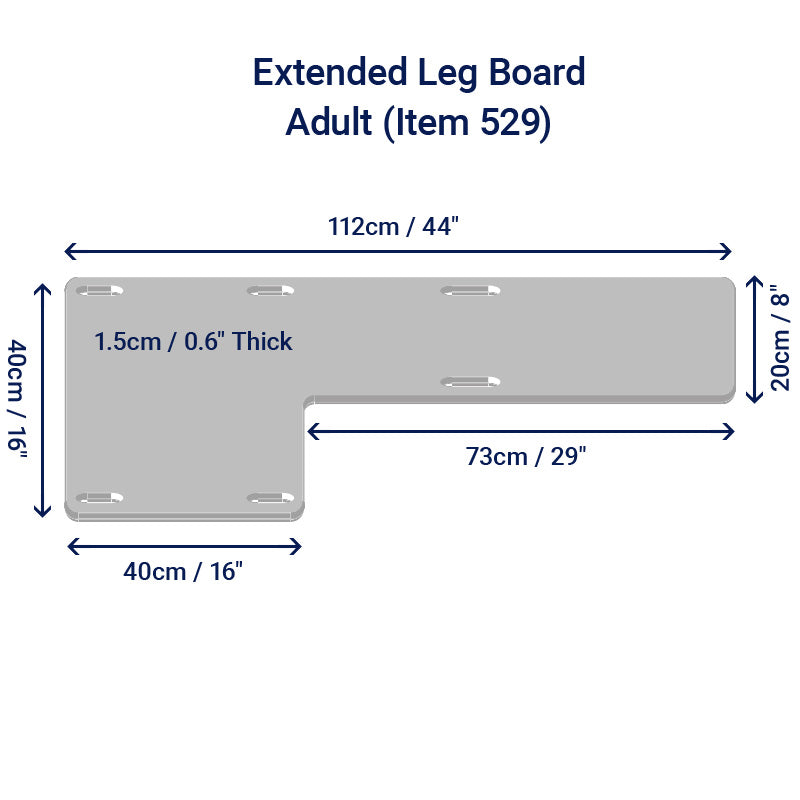

529
Extended Leg Board – Adult
112cm / 44″
40cm / 16″

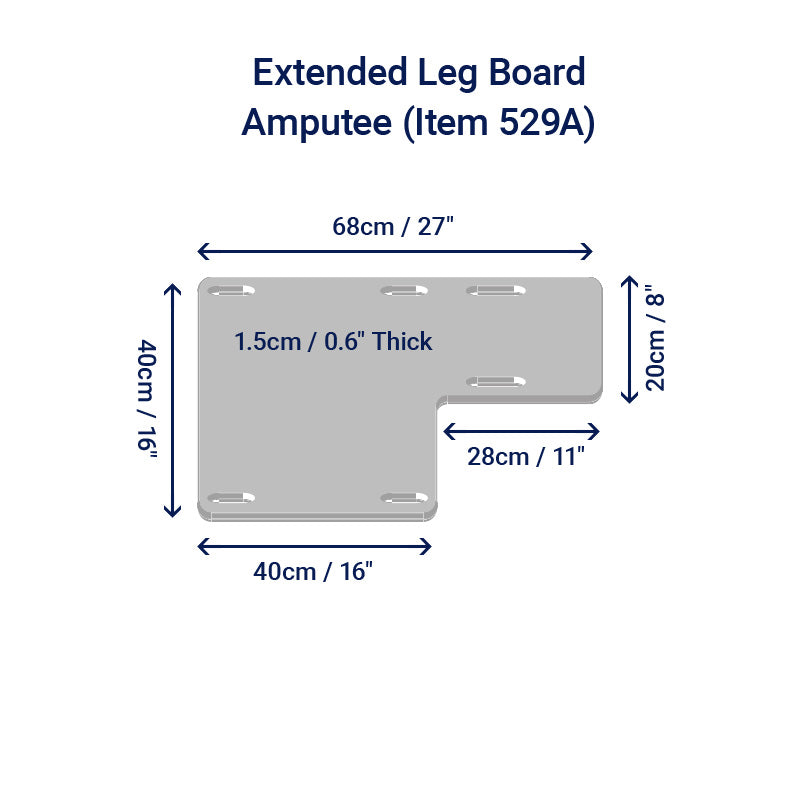

529A
Extended Leg Board – Amputee
68cm / 27″
40cm / 16″

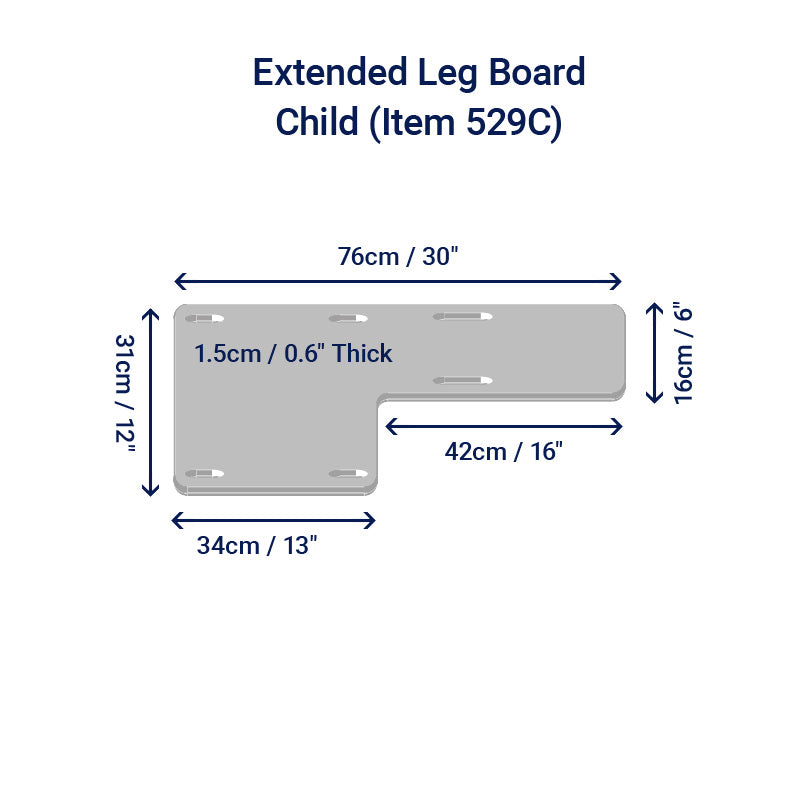

529C
Extended Leg Board – Child
76cm / 30″
31cm / 12″
Weight Testing:
There is no Standard for this product, and we are aware that any testing we do does not account for individual people’s weight distribution, shape and size. For our own ‘in house’ testing we placed a total of 96.1kg / 211.9lbs. on a wheelchair seat section of the Board and three weights totalling 41.9kg / 92.3lbs on the Extended Leg Section of the board, so the weight was running the length of the extended section. We left the weights in place for 30 minutes, this is 10 minutes longer than the testing time when testing Patient Lifting Slings for the Australian and International Standards. The extended section of the Board bent down so the top edge of the board was 19cm / 7.5″ from the floor. After 30 minutes this had gone down to 18cm / 7.1″ from the floor. After removing the weights from the Extended Leg Section the board resumed to being straight again and the end was 41.9cm / 16.5″ from the floor. We then placed the board on a flat table and noticed a slight bend of about 1mm / 0.04″. There was no apparent damage to the Board.
