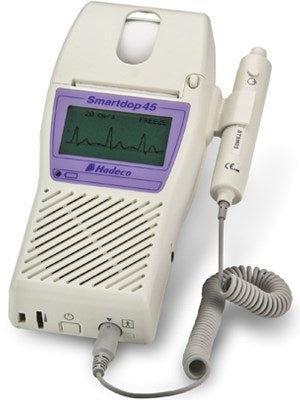

Doppler Smartdop 45 Including 8Mhz Probe

Smartdop 45 Vascular Ultrasound Bi-Directional Doppler for Peripheral Vascular Procedures, PPG, PV & more. Handheld Compact, LCD Display, Waveform Memory
Bi-Directional Doppler in a convenient hand-held size, with capabilities normally found only in larger systems. It is fully customisable so you can choose only the options & accessories required for your healthcare facility.
Clinical Applications:
Peripheral vascular procedures - Determination and monitoring of foetal heart rate - Venous reflux assessment (PPG) - Maximum Venous Outflow (PV) - Blood pressure segmental studies - Penile & digit systolic pressures - Pedal pulse checks
Features:
Prints high resolution waveforms & numerical data in real-time.
Automatic gain & baseline control, no manual adjustment necessary.
30 waveform memory. Save for viewing or printing later. You can also download to Smart-V-Link Vascular software for electronic reporting.
Various mode settings are available for optimal measurement.
Transfers waveforms and numerical data to computer via USB interface.
PC Keyboard Connector (PS/2)for easy entry of patient data.
Specifications:
Power: DC 12V
Automatic shut off: No signal - 2mins, Freeze - 5 mins, Other - 15mins
Waveform memory: 30 waveforms
Speaker output: 200 mW or more
Frequency: 2, 4, 5, 8, 10 MHz
LCD Display: 128 x 64 dots
Paper: 58 x 25mm rolls
Print Speed: 25mm/sec
Weight: 500g
External outputs: Headset, USB port & PC keyboard
UOM: Each
Image is sample of product
