Cordless Patient Monitoring with Weight Activated Pads/Mats
The cura1 Universal pads and mats are compatible with both wired and wireless systems. Can be helpful in homecare or hospitals settings for cordless patient monitoring. Auto alarm reset when back in bed or via console. cura1 Universal Range consists of a transmitter, 3 x floor mats, 3 x bed/chair pads.
Features
Requires 2720 Transmitter
Simple operation and maintenanceNo more cords between pad/mat & monitor pagerProvides a discreet and professional appearance with less tripping hazardsRecommended weight range 30-200kgAll cordless pad/mats require a 2720 transmitter
Simple operation and maintenance
No more cords between pad/mat & monitor pager
Provides a discreet and professional appearance with less tripping hazards
Recommended weight range 30-200kg
All cordless pad/mats require a 2720 transmitter
Bed & Chair Pads
Alarm when person gets up from a bed or chairCare instructions printed on padsVent holes in the neck reduce risk of moisture ingressMade from durable non-allergenic soft PVC
Alarm when person gets up from a bed or chair
Care instructions printed on pads
Vent holes in the neck reduce risk of moisture ingress
Made from durable non-allergenic soft PVC
Floor Mats
Alarm when person steps on matSurface material foam PU (polyurethane)Bottom material PVC without phthalatesWheelchair friendly, low profile edges18 months warranty is provided from the date of invoice.Single and Dual-Fold Mats: Foldable design for easy storage & transportation. Available in beige colour to help some Alzheimer patients who have trouble with dark mats being perceived as a "dark hole in the floor".
Alarm when person steps on mat
Surface material foam PU (polyurethane)
Bottom material PVC without phthalates
Wheelchair friendly, low profile edges
18 months warranty is provided from the date of invoice.
Single and Dual-Fold Mats: Foldable design for easy storage & transportation. Available in beige colour to help some Alzheimer patients who have trouble with dark mats being perceived as a "dark hole in the floor".
Technical Specifications

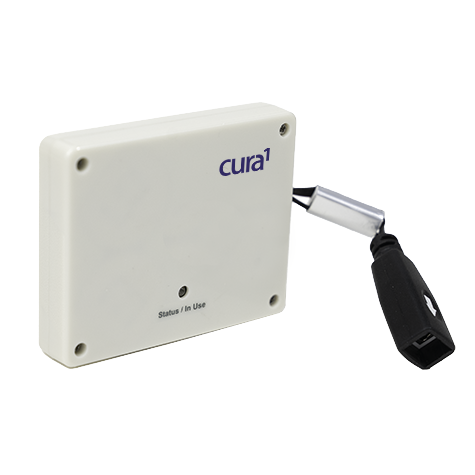

2720 Transmitter
Auto alarm reset when back in bed or via ConsoleRange: 50m*Frequency: 433 MHz
Auto alarm reset when back in bed or via Console
Range: 50m*
Frequency: 433 MHz
*Dependent on environmental conditions
Bed & Chair Pads
When fitted with a 2720 Universal Transmitter, pads & mats works with cura1 Cordless receivers eg 2700, 2702, 2544, 2549, 3500R, 3501 & 3508When USB (mini) to RJ10 Breakaway Cable is used, pads & mats work with any Premium monitor or receiver eg. 2701, 2703, 2544Recommended weight range for reliable operation: 30 - 200 kg.Pad dimensions:Under Mattress Bed Pad - 84cm x 26cmUniversal Single Fold Bed Pad - 76cm x 25cmUniversal Chair Pad - 38cm x 25cm
When fitted with a 2720 Universal Transmitter, pads & mats works with cura1 Cordless receivers eg 2700, 2702, 2544, 2549, 3500R, 3501 & 3508
When USB (mini) to RJ10 Breakaway Cable is used, pads & mats work with any Premium monitor or receiver eg. 2701, 2703, 2544
Recommended weight range for reliable operation: 30 - 200 kg.
Pad dimensions:Under Mattress Bed Pad - 84cm x 26cmUniversal Single Fold Bed Pad - 76cm x 25cmUniversal Chair Pad - 38cm x 25cm
Under Mattress Bed Pad - 84cm x 26cmUniversal Single Fold Bed Pad - 76cm x 25cmUniversal Chair Pad - 38cm x 25cm

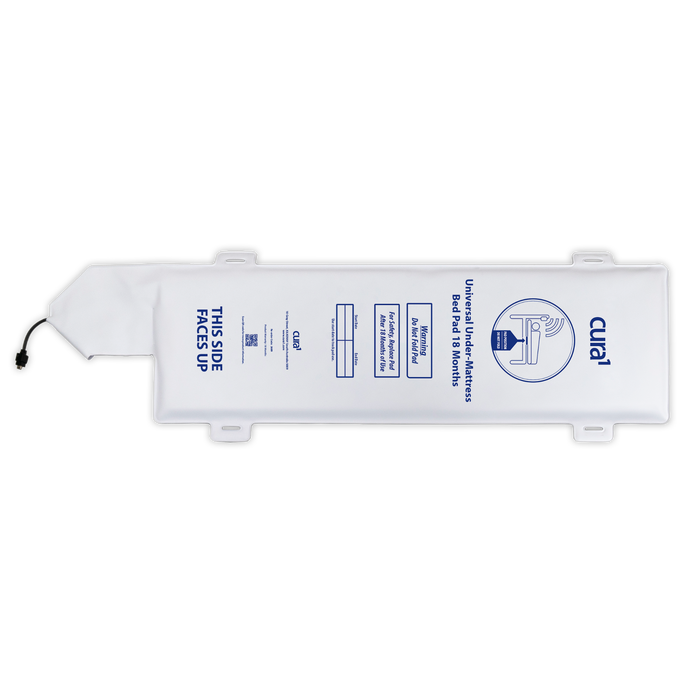

Under Mattress Bed Pad - 84cm x 26cm

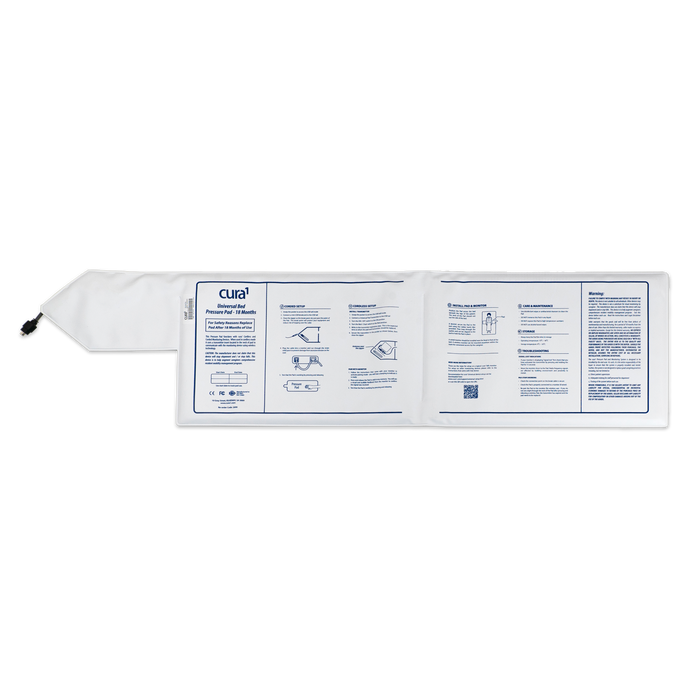

Universal Single Fold Bed Pad - 76cm x 25cm

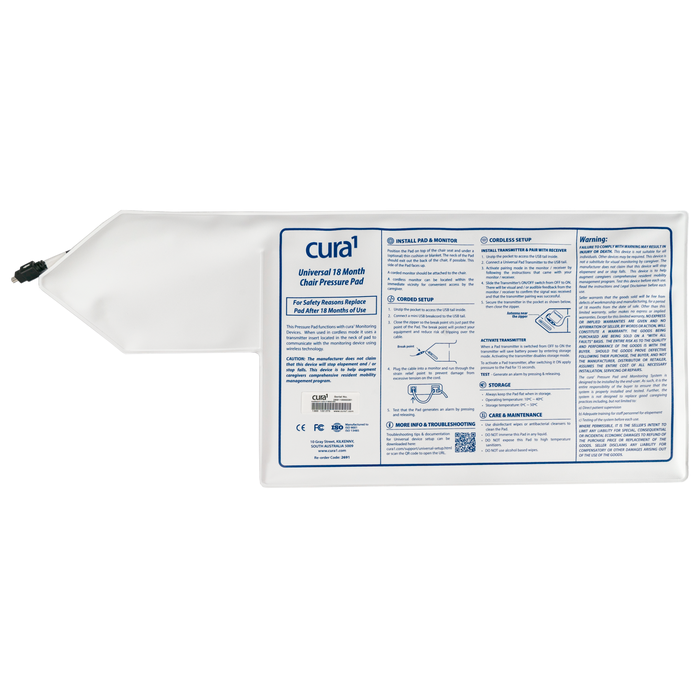

Universal Chair Pad - 38cm x 25cm
Floor Mats
When fitted with a Universal Transmitter(2720), Pads & Mats work with cura1 Cordless Receivers eg 2700, 2544, 2549, 3500, 3501 & 3508When USB (mini) to RJ10 Breakaway Cable is used, Pads & Mats work with any Premium Monitor or receiver eg. 2701, 2544, 2503Recommended weight range for reliable operation: 30 - 200 kgDimensions:Universal Floor Mat - 122cm x 61cmSingle-Fold Floor Mat - 90cm x 60cmDual-Fold Floor Mat - 122cm x 61cm
When fitted with a Universal Transmitter(2720), Pads & Mats work with cura1 Cordless Receivers eg 2700, 2544, 2549, 3500, 3501 & 3508
When USB (mini) to RJ10 Breakaway Cable is used, Pads & Mats work with any Premium Monitor or receiver eg. 2701, 2544, 2503
Recommended weight range for reliable operation: 30 - 200 kg
Dimensions:Universal Floor Mat - 122cm x 61cmSingle-Fold Floor Mat - 90cm x 60cmDual-Fold Floor Mat - 122cm x 61cm
Universal Floor Mat - 122cm x 61cmSingle-Fold Floor Mat - 90cm x 60cmDual-Fold Floor Mat - 122cm x 61cm

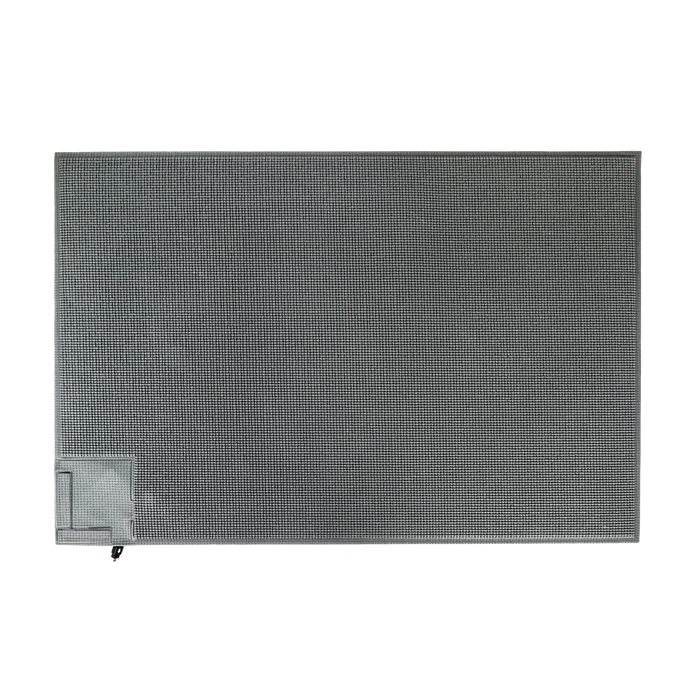

Universal Floor Mat - 122cm x 61cm

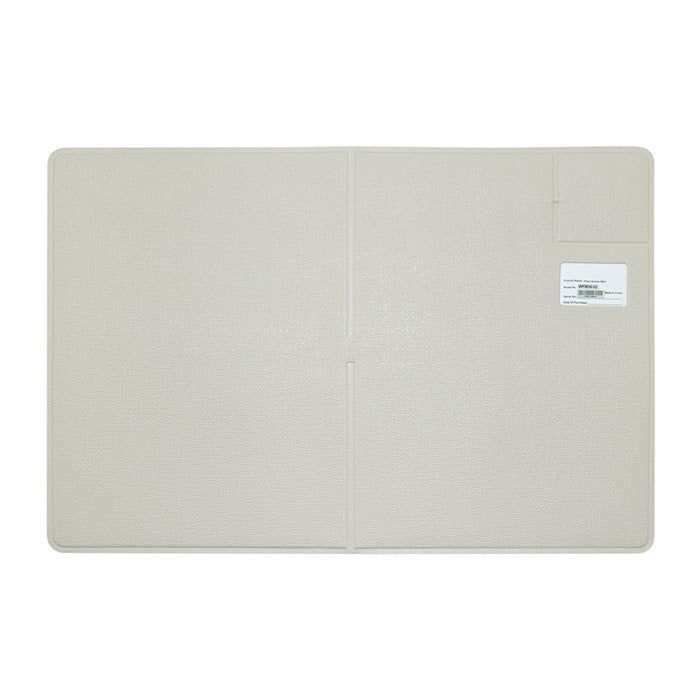

Single-Fold Floor Mat - 90cm x 60cm

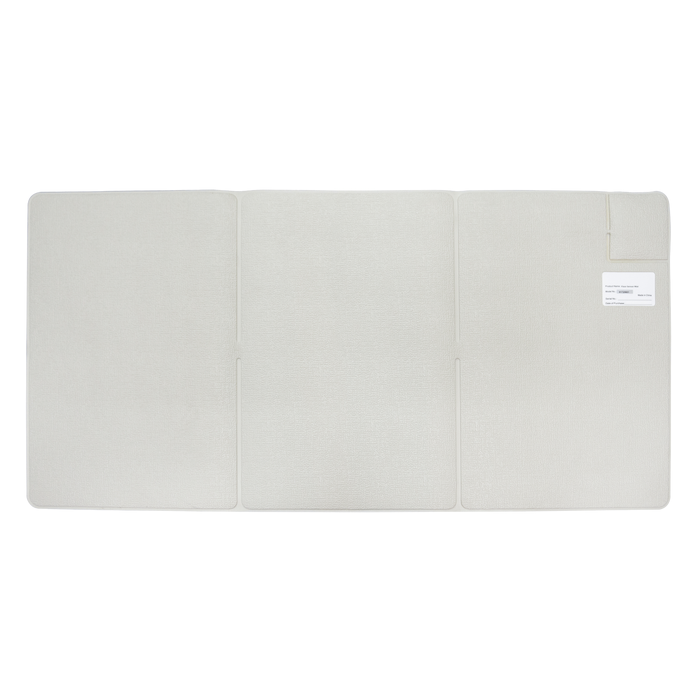

Dual-Fold Floor Mat - 122cm x 61cm
DetailsBrandcura1
